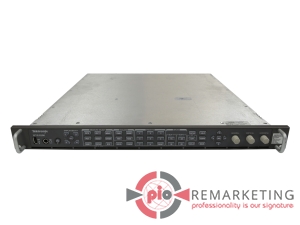

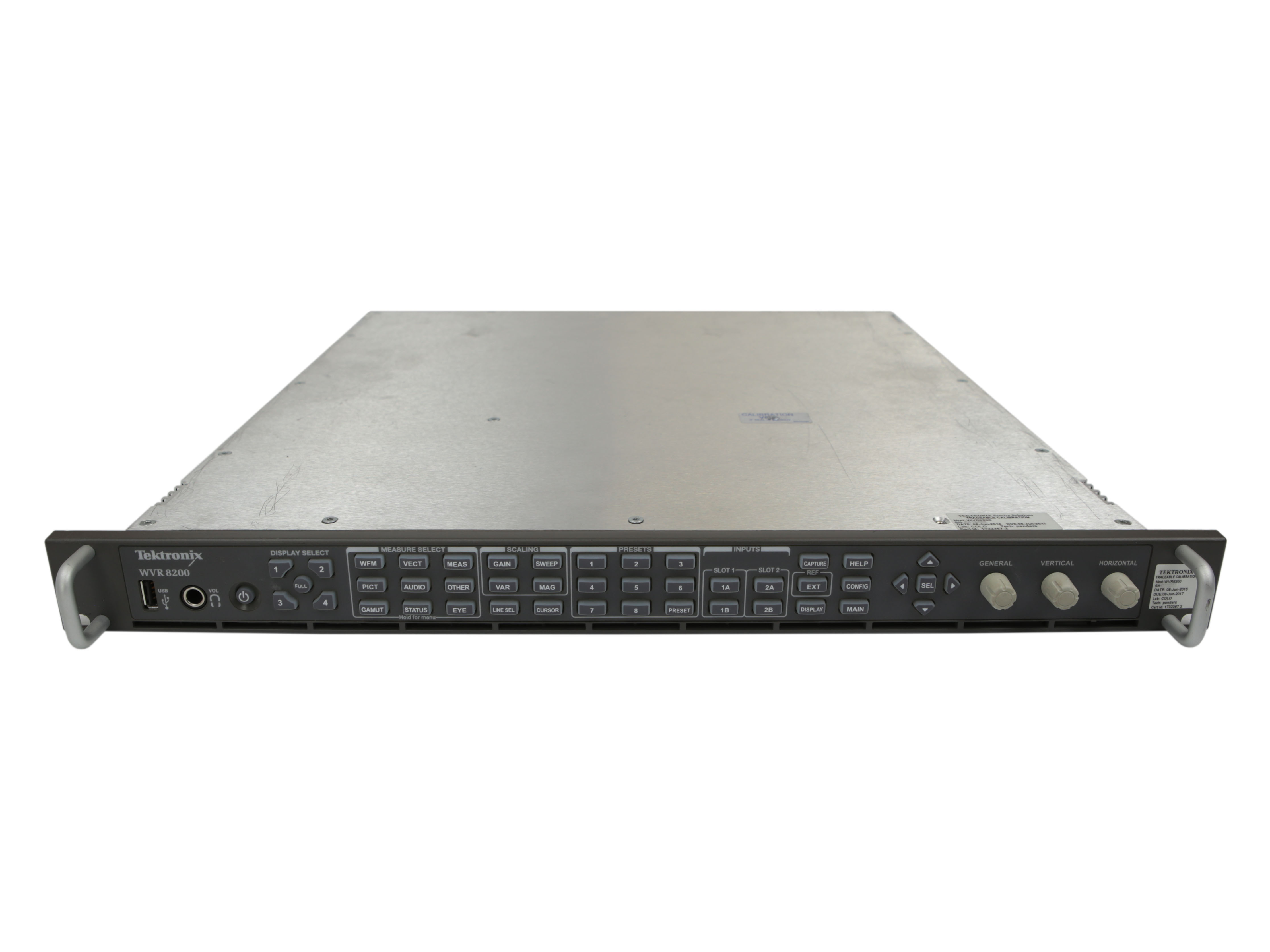

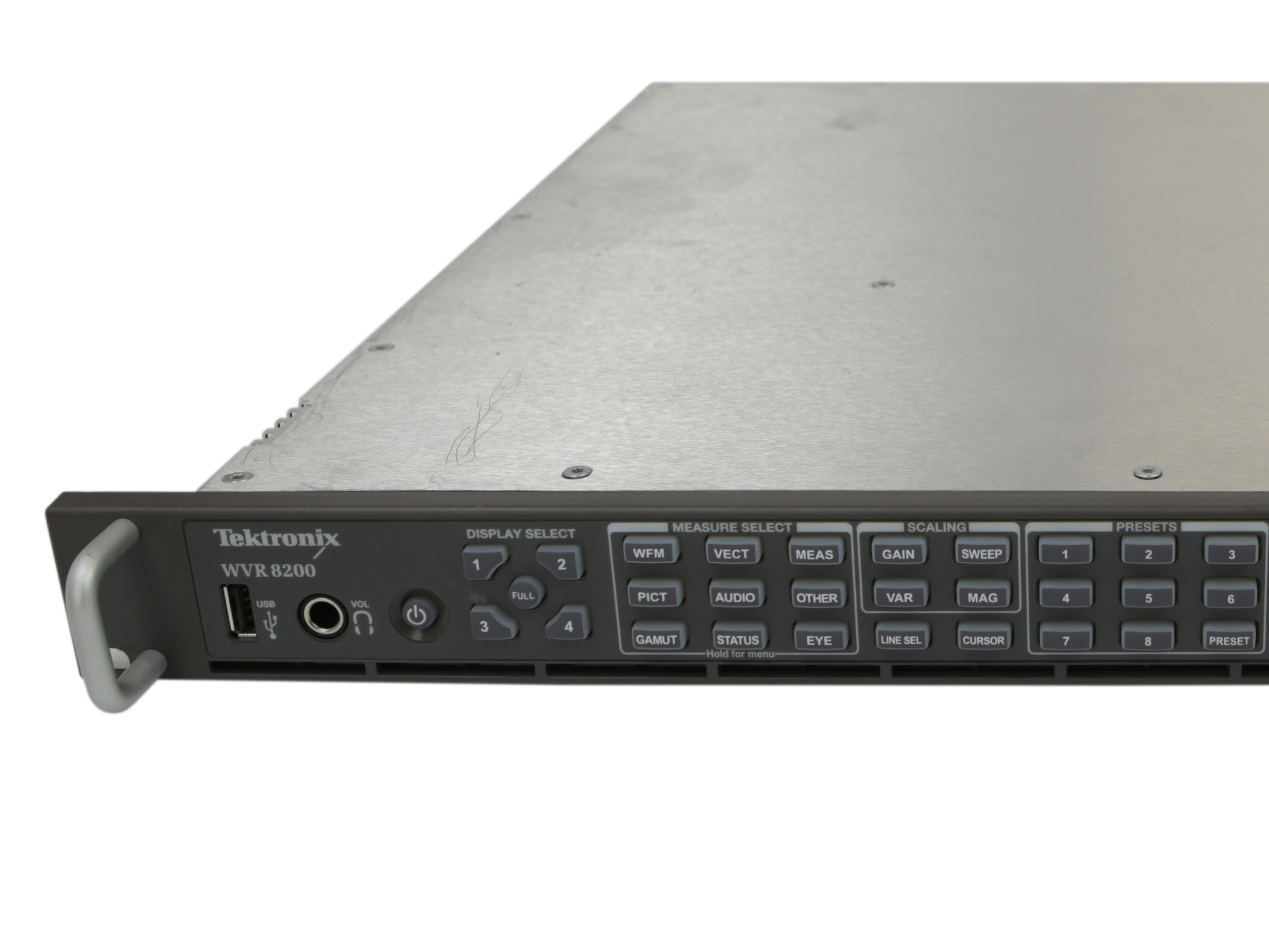

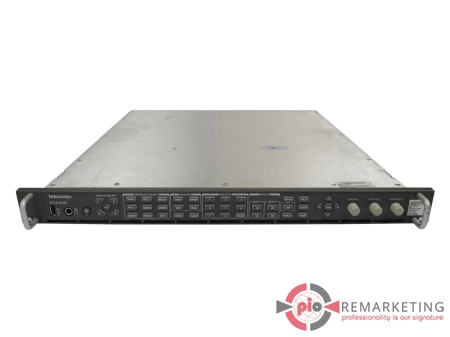

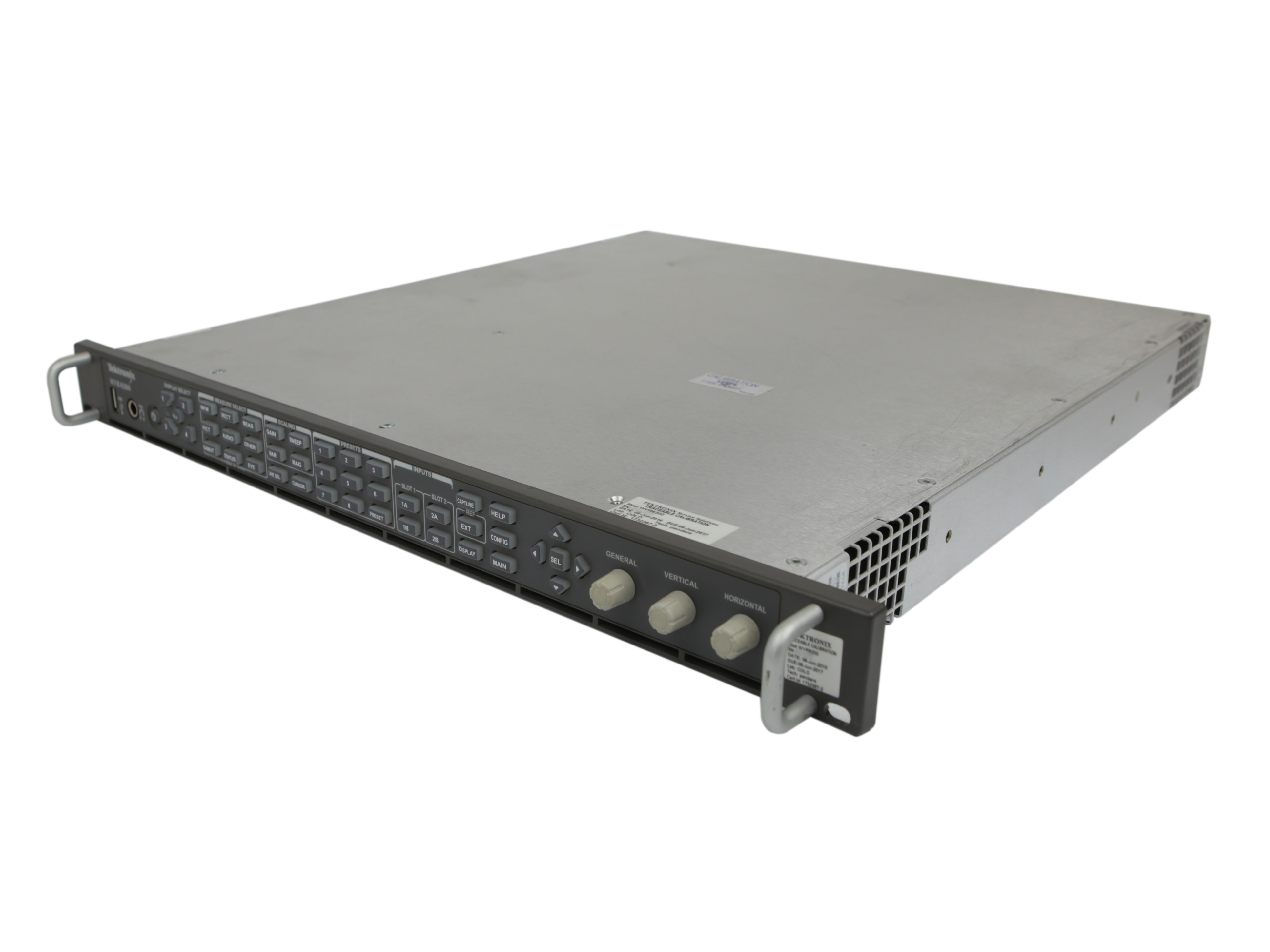

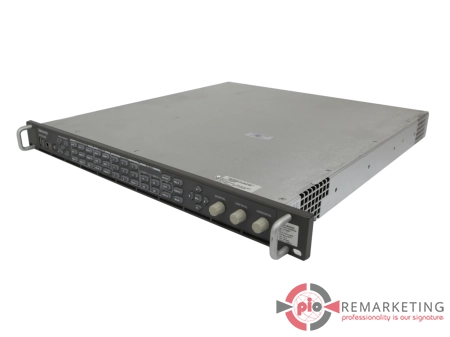

Modular Waveform Rasterizer Tektronix WVR8200 3G/HD/SD SIM, DPE

Modular Waveform Rasterizer Tektronix WVR8200 3G/HD/SD SIM, DPE – server component for compatible systems

Modular Waveform Rasterizer Tektronix WVR8200 3G/HD/SD SIM, DPE is a professionally tested component intended for compatible server and workstation platforms. Please verify the part number, socket, connectors and system compatibility before ordering.

Modular Waveform Rasterizer Tektronix WVR8200 3G/HD/SD SIM, DPE

Manufacturer: Tektronix

Model: WVR8200

Supported standard formats: SD-SDI (270 Mb/s) and HD-SDI (1.5 Gb/s)

Number of SDI inputs: 2

Expansion options: 3G option – support for 3G-SDI (Level A and Level B); SIM option – simultaneous monitoring of two SDI inputs (Simultaneous Input Monitoring); DPE option – analogue/digital audio + decoding of Dolby E/Digital/Digital Plus formats + volume monitoring

Supported video signal formats: With extensions including 4K / UHDTV1 (4096×2160 and 3840×2160) – requires the 3G + 2SDI option and, optionally, the 4K option

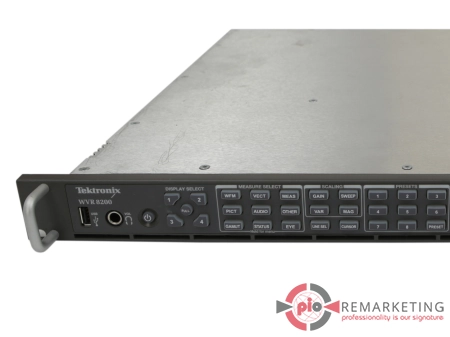

Display: 1024×768-pixel LCD (user interface)

Measurement accuracy (SDI A/B output): ±0.5% in 1× mode; ±0.2% in 5× mode, for a full scale of 700 mV

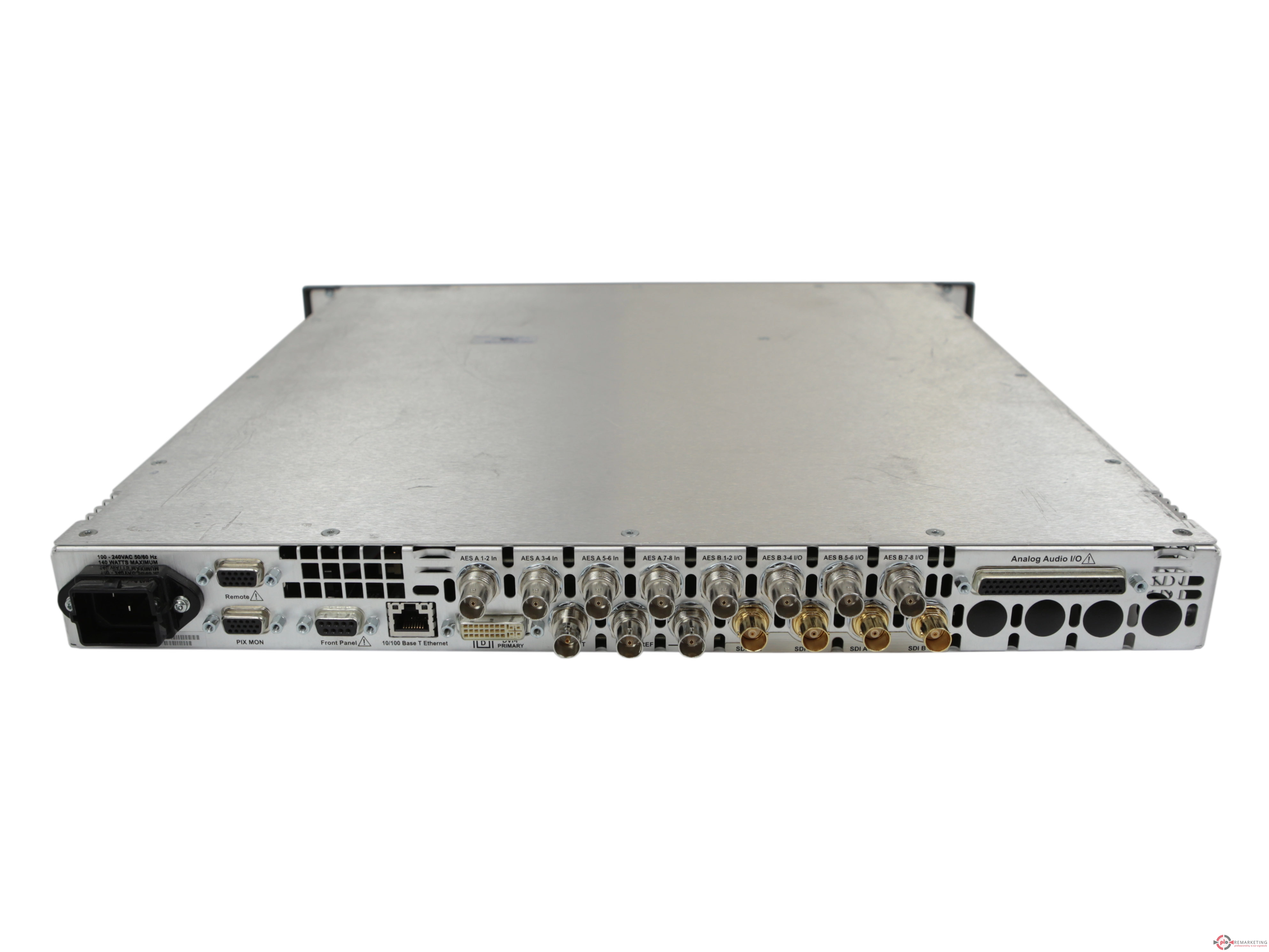

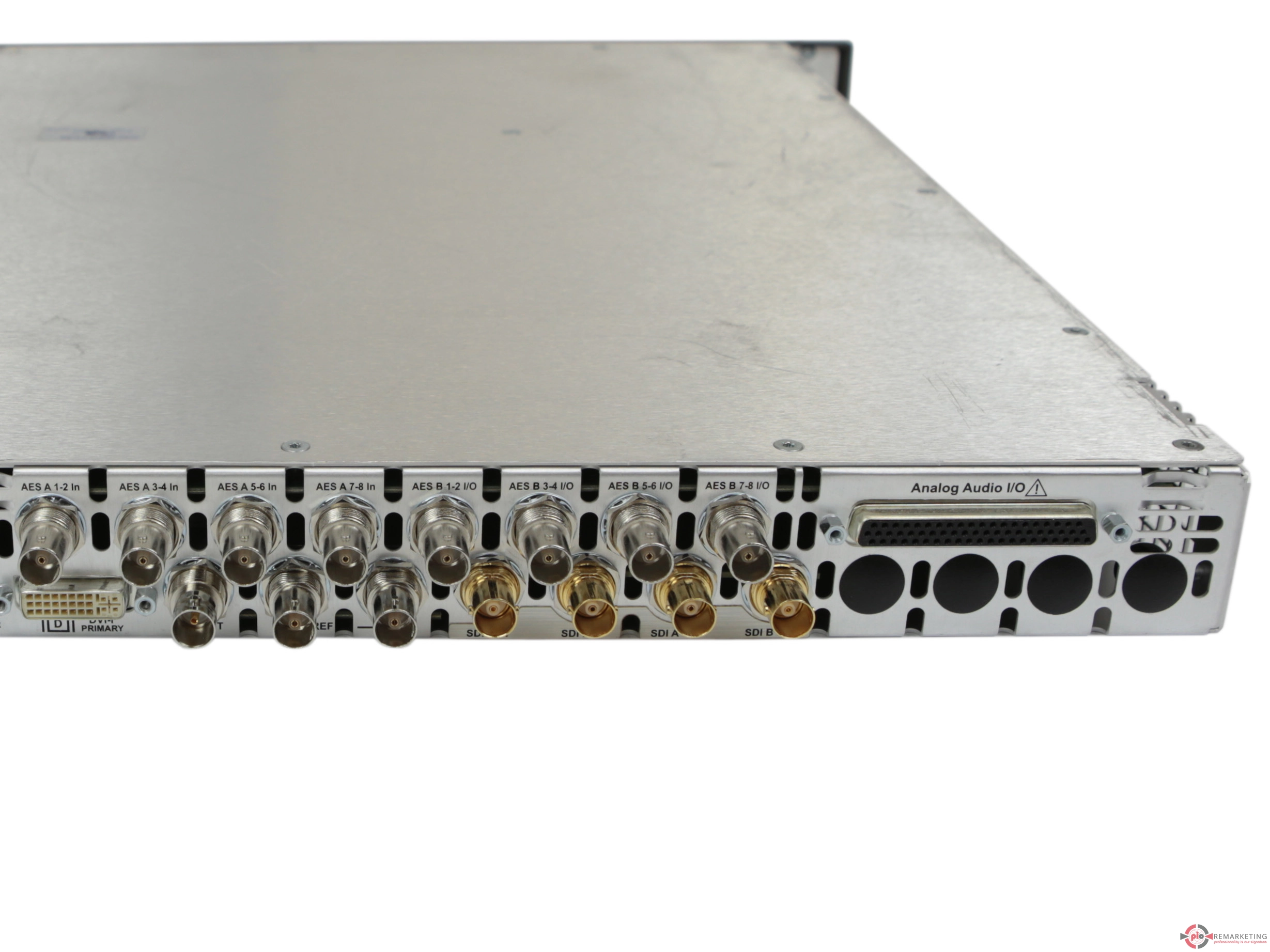

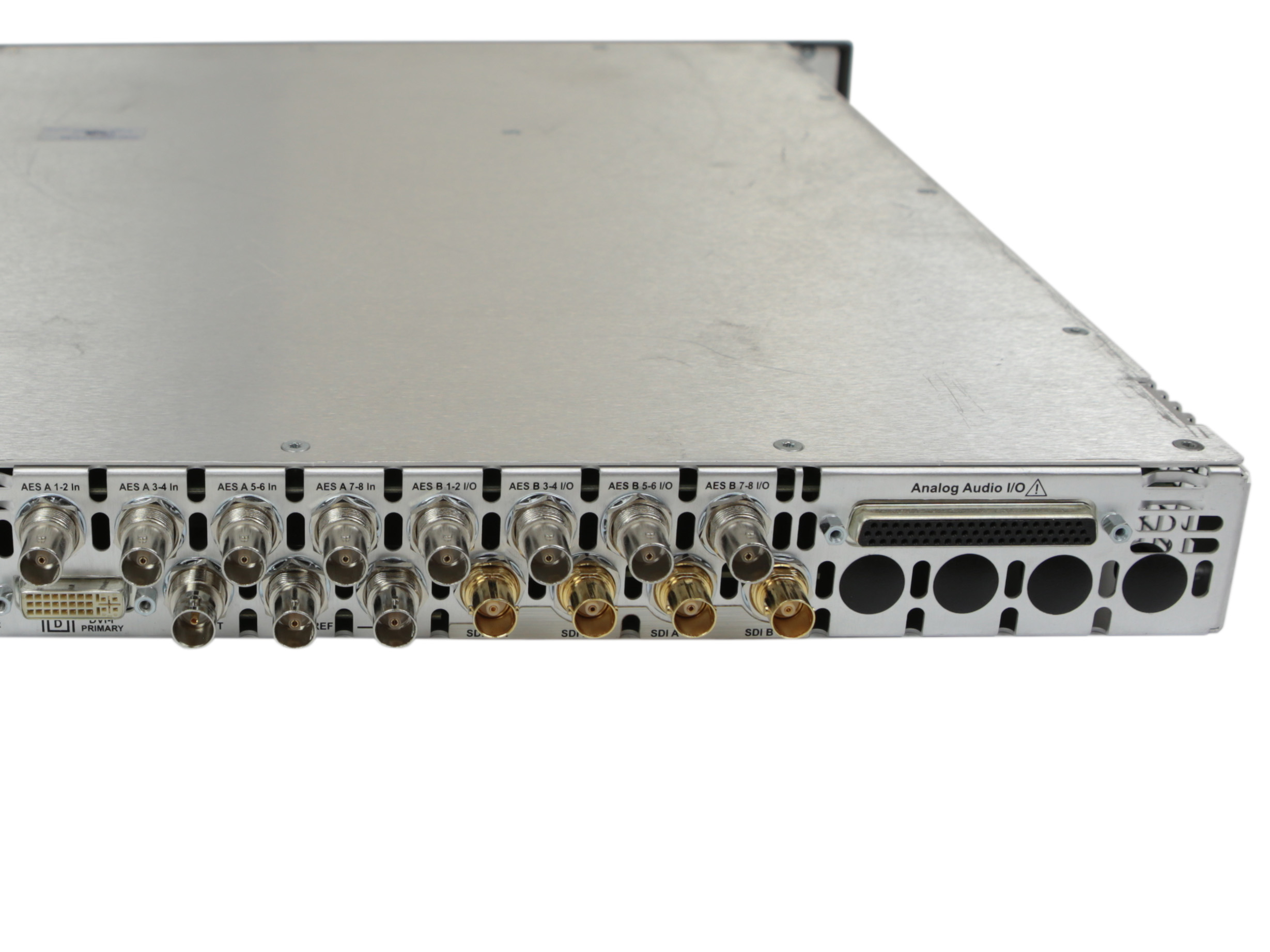

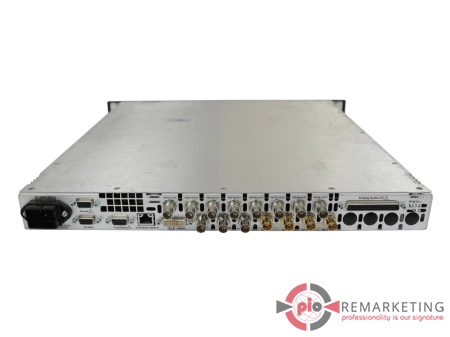

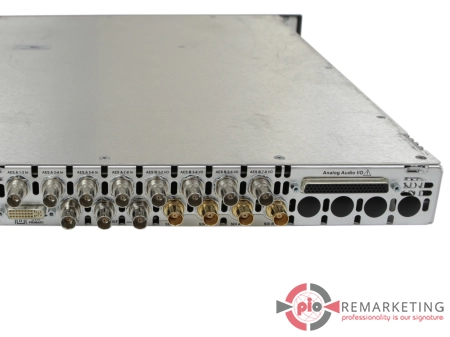

Input connectors: BNC, 75 Ω terminated (active input loop)

Power supply: 100–240 V AC ±10%, 50/60 Hz; typical power consumption: 100–140 W

Applications: Signal quality monitoring in studios and television broadcasts; monitoring of SDI/HD/3G signals; broadcast systems.
