Power Supply HP HSTNS-PL33 | 1500 W DL580 G8 684530-201 684529-001 704604-001

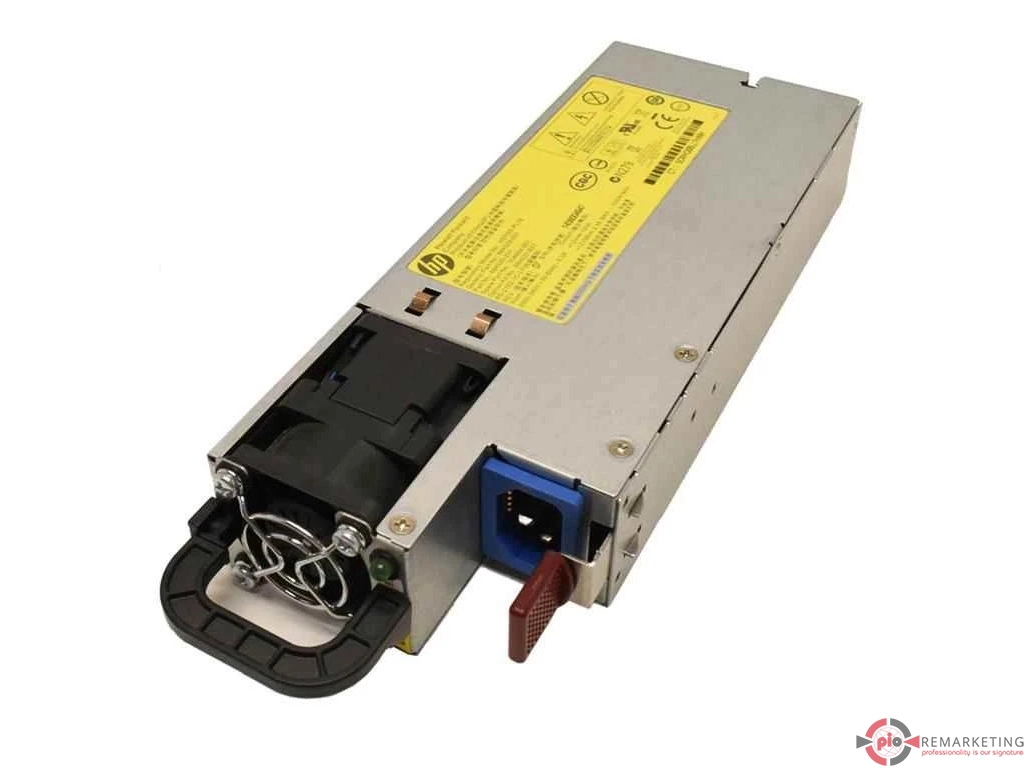

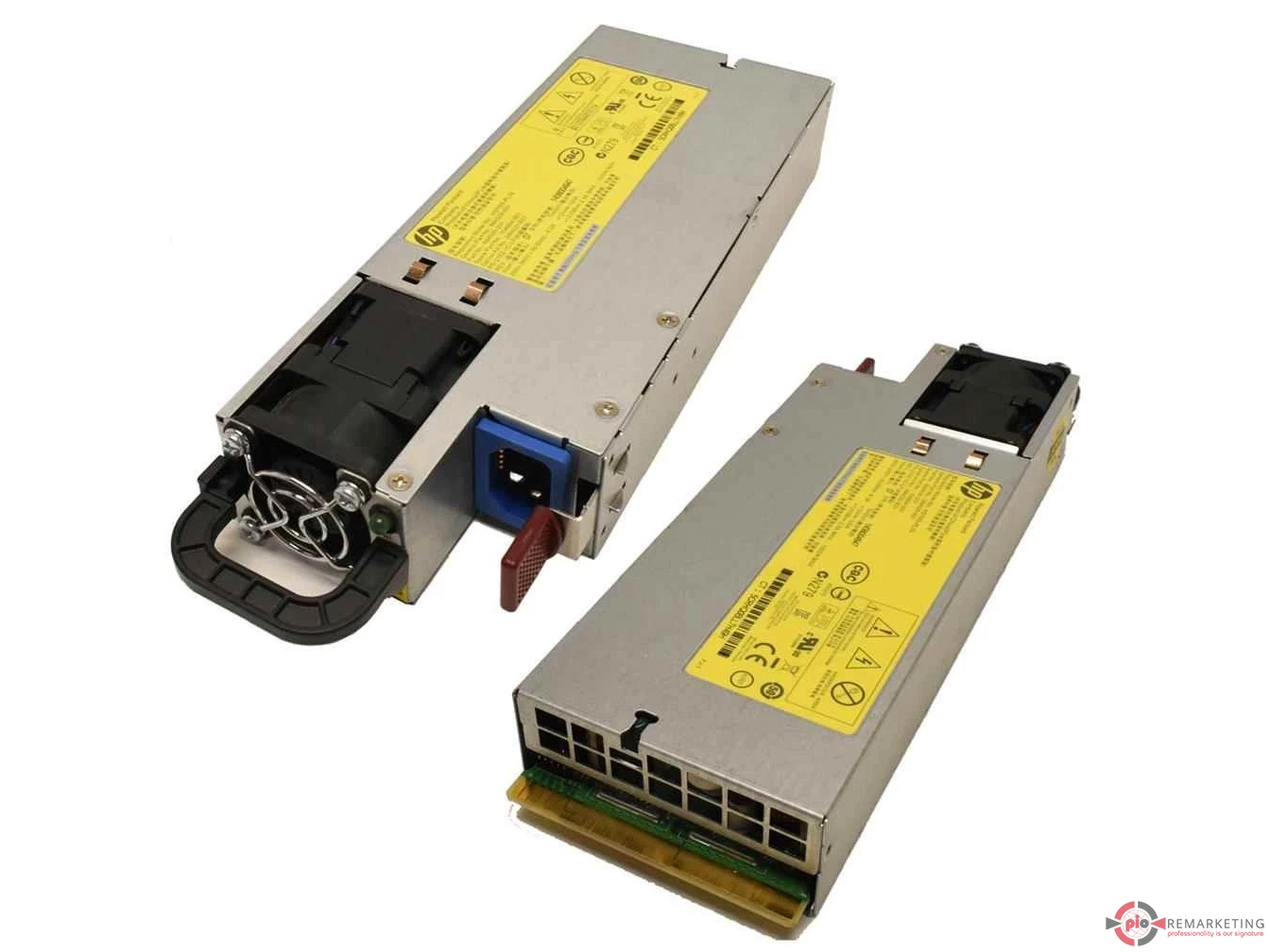

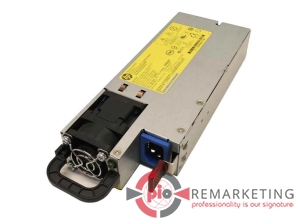

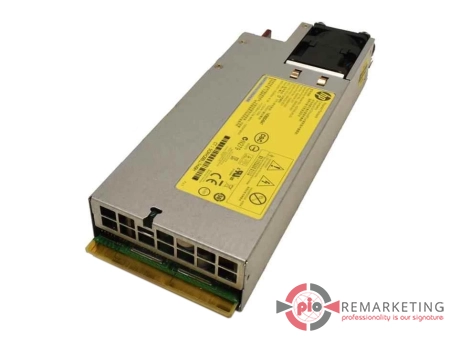

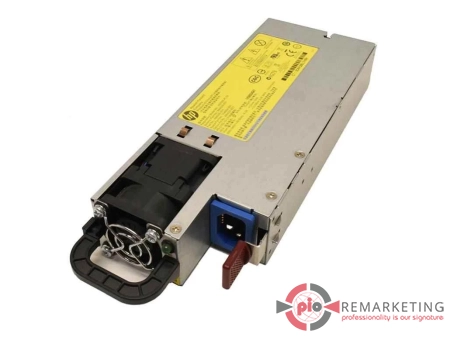

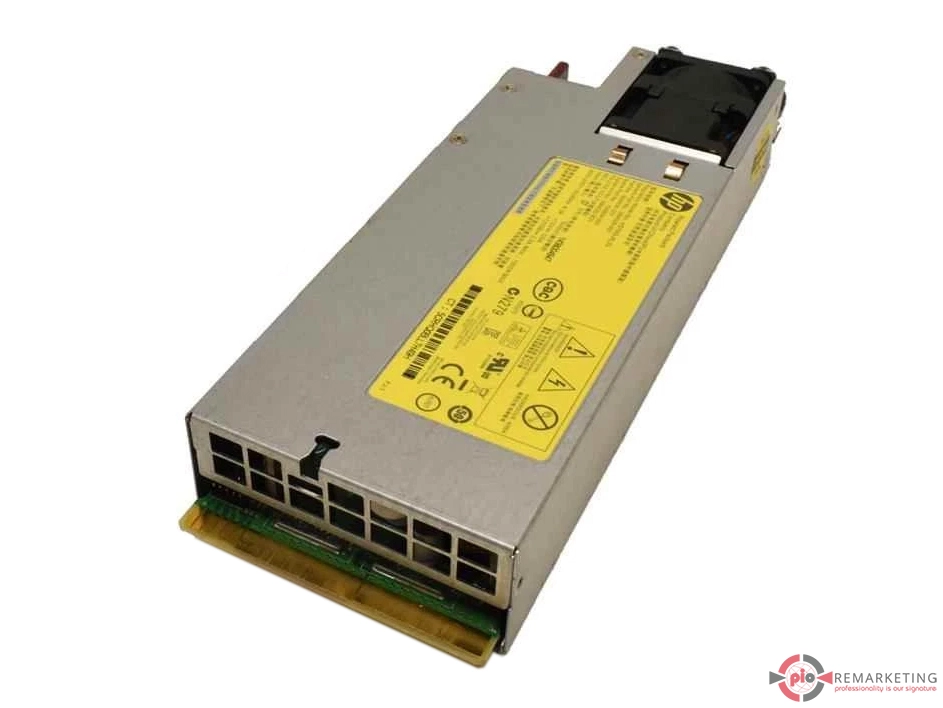

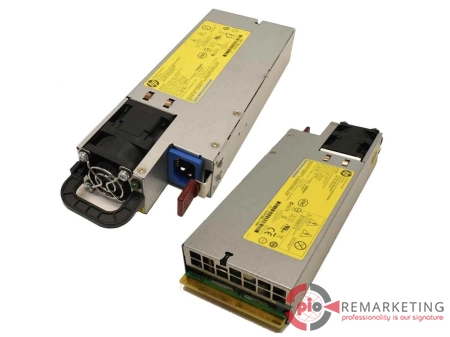

We offer an original, high-performance HP HSTNS-PL33 server power supply unit with a power rating of 1500 W, designed for use in HP ProLiant DL580 G8 and DL560 G8 servers. The power supply unit is modular and hot-plug capable, allowing it to be replaced without having to shut down the system.

Power Supply HP HSTNS-PL33 | 1500 W DL580 G8 684530-201 684529-001 704604-001

• Manufacturer: HP

• Model: HSTNS-PL33

• HP part numbers:

  • 684530-201

  • 684529-001

  704604-001

• Rated power: 1500 W

• Type: Modular / Hot-Plug PSU

• Input voltage: 100–240 V AC, 50/60 Hz

• Input current: up to 12 A @ 115 V / 6 A @ 230 V

• DC output: +12 V / +12 VSB

• Energy efficiency: 80 PLUS Platinum (efficiency up to 94%)

• Cooling: Active, automatically controlled fan

• Protections: OVP, OCP, OTP, SCP

Compatibility:

The HP HSTNS-PL33 1500 W power supply is compatible with:

• HP ProLiant DL580 G8

• HP ProLiant DL560 G8

• HP ProLiant DL380p G8 (with 1500 W configuration)

• HP ProLiant DL360p G8 (in selected models with a redundant PSU)
